Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine

Name: Fullauto Blade Filter Paper Folding Production Line HighPrecision Knifetape Pleating Machine
Brand: TONGCHEN
Price: 45000 USD

Quality Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine for sale

Brand Name : TONGCHEN

Model Number : TC-5569

Certification : ISO

Place of Origin : Anhui,China

MOQ : 1

Price : $45000~55000

Payment Terms : T/T

Supply Ability : 15

Delivery Time : 30

Packaging Details : Wooden Box

Computerized : Yes

Guarantee Time : 1 Year

Pleating Speed : 0-140pleats/min

Adjustable Pleating Height : 8-65mm

Max width : 800mm

After Warranty Service : 1 Year

Contact Now

Full-auto Blade Filter Paper Folding Production Line High-Precision Knife-tape Pleating Machine

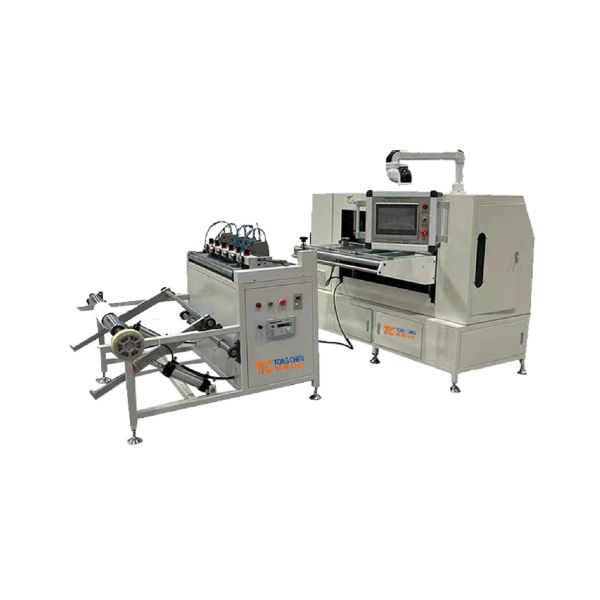

The Fully Automatic Servo Knife Folding Paper Production Line is a high-efficiency pleating system designed for precise and uniform folding of filter paper, wire mesh, and non-woven fabric. It utilizes an upper and lower knife alternation folding method, enabling adjustable folding heights and stable operation. Custom specifications are available to meet specific customer requirements.

Technical Specifications

Pre-cutting Paper Conveying Machine

Specification	Value
Paper Conveying Speed	0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper	25 - 850mm
Power Supply Voltage	220V / 50Hz
Motor Power	0.55 kW
Working Air Pressure	0.6 Mpa
Machine Weight	250 kg
Dimensions (L × W × H)	1280 × 1100 × 1200 mm

Folding Machine

Specification	Value
Maximum Product Width	850 mm
Adjustable Folding Height	5-100 mm (depending on material)
Folding Speed	0 - 280 folds/min (stepless adjustable)
Power Supply Voltage	380V / 50Hz
Main Motor Power	1.5 kW
Lifting Motor Power	0.4 kW
Preheating Power	6 kW
Working Air Pressure	0.6 Mpa
Machine Weight	450 KG
Dimensions (L × W × H)	1800 × 1900 × 1650 mm

Key Features & Advantages

Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for smooth workflow
High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
Adjustable Speed and Height: Flexible for different materials and filter specifications
Energy-Efficient Heating System: Fast preheating with precise temperature control
User-Friendly Control Panel: Simple operation with digital adjustments and safety design
Stable Performance: High-quality components ensure long-term durability and low maintenance

Applications

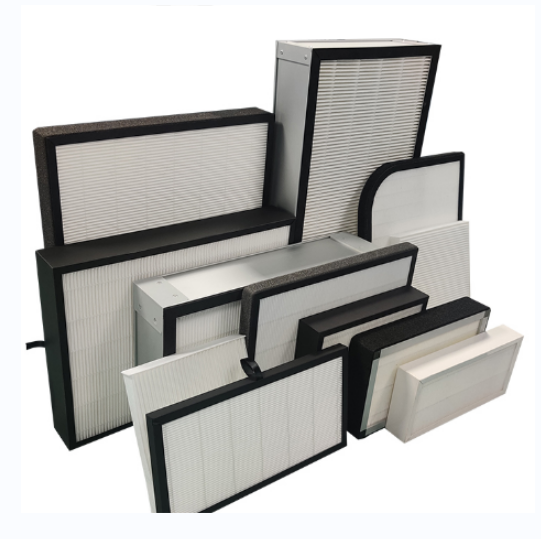

Automotive Air Filters
Cabin Filters
Industrial Dust Filters
Air Purification Filters
HEPA Filter Production Lines

Manufacturer Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—a major transportation hub and industrial center. Our company specializes in the research, development, design, and manufacturing of advanced filter production equipment, delivering practical and efficient solutions that meet both domestic market demands and international standards.

Product Range

Paper folding equipment and rotating machines
Diesel engines and large air filter production equipment
Partitionless and partitioned filter production equipment
Pleating machines and glass fiber strip production lines

We prioritize product quality and comprehensive service to enhance your brand's competitive edge in global markets. Tongchen Technology is committed to becoming your most reliable mechanical solutions provider and long-term business partner.
